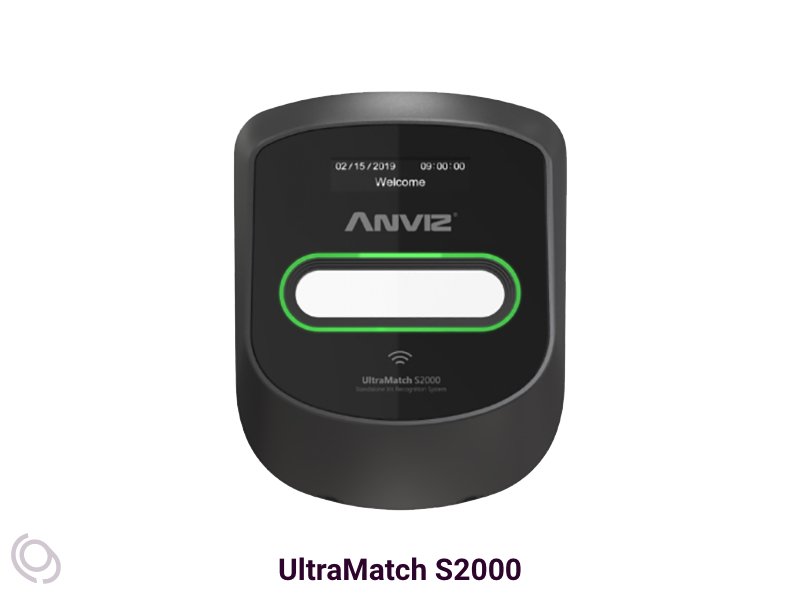

Anviz UltraMatch S2000 Iris Terminal
Anviz UltraMatch S2000 CORGEX Singapore Distribution Access Control Terminal
UltraMatch-Standalone Iris Recognition System
UltraMatch series products has a stylish design and reliable performance. Adopting BioNANO algorithm, the system provides the most accurate, stable, and quickest iris recognition while delivering high-level security in biometric enrollment, individual identification, and access control. Iris recognition system can identify and authenticate users with certainty. Iris is designed to last, and is not affected by outside environmental conditions. A web based software and a PC version management software allow clients to manage the system easily. Iris SDK is available to developers and integrators for developing identity management applications or easy integration and expansions to existing security system. Depending on its high accuracy, the terminal is ideal for high-level security applications, such as border protection, Pharmaceutical & labs, or jails./p>
| Model | S2000 |
|---|---|
 |
|
| Max User | 1,000 |
| Max Template | 1,000 |
| Max Card | 1,000 |
| Max Log | 100,000 |
| Communication | TCP/IP, Wi-Fi |
| USB | Mini USB slave, |
| Serial Port | RS485 |
| Built-in Webserver | Yes |
| Wiegand | Wiegand 26/34, Anviz Wiegand |
| IO | Wiegand In/Out |
| Algorithm | BioNANO V11 |
| Identification Mode | Iris, Card, Card+Iris |
| Verification Speed | <1s |
| RFID | 125KHZ EM, optional HID iClass SE |
| RFID Read Range | |
| Iris Capture | Dual Iris Capture |
| Iris Capture Range | |
| Image Format | Progressive Scan |
| Eye Safety | ISO/IEC 19794-6(2005&2011) / IEC62471: 22006-07 |
| Verify Distance | |
| Verify Range | |
| UP/Down Angle | |
| FAR | ≤1/1,000,000,000,000 |
| Self-defined Status | 8 |
| Work Code | 6 digit |
| Groups & Time Schedules | 16 Groups, 32 Time Zones |
| Scheduled Bell | 30 |
| Short Message | 50 |
| Platform | WinCE / Linux |
| CPU | ARM Cortex |
| Screen | Active Area 2.23 in.(128 x 32 mm) LCD |
| LED | Yes |
| Camera | Dual |
| Voice Prompt | Yes |
| Tamper | Yes |
| Daylight Saving | Manual Mode, Automatic Mode |
| On-board Buzzer | Yes |
| Operating Temperature | -20℃~50℃ (Except battery) |
| Humidity Verification | 0% ~ 90% RH |
| Waterproof | IP53(Optional Waterproof Cover) |
| Power | 12V 2A |
| Dimensions | 180mm (W) * 141mm (H) *70mm (D) |
| Certificates | CE, FCC, RoHS |
| Operating System | Windows / Webserver |
| System Architecture | Client / Server |
| CMS | CrossChex Standard, CrossChex Lite |
| Time Schedules | Yes |
| Holiday/Leave Management | Yes |
| Report | Yes |
| Data Analytics | Yes |
| iOS Apps | Yes |
| Android Apps | Yes |
| Weight | 1 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
| Interface | RJ45 Ethernet 10 / 100M |
| Identificate | Iris |
| Brand | Anviz |
| RFID | EM ID 125KHZ, HID iCLASS |
