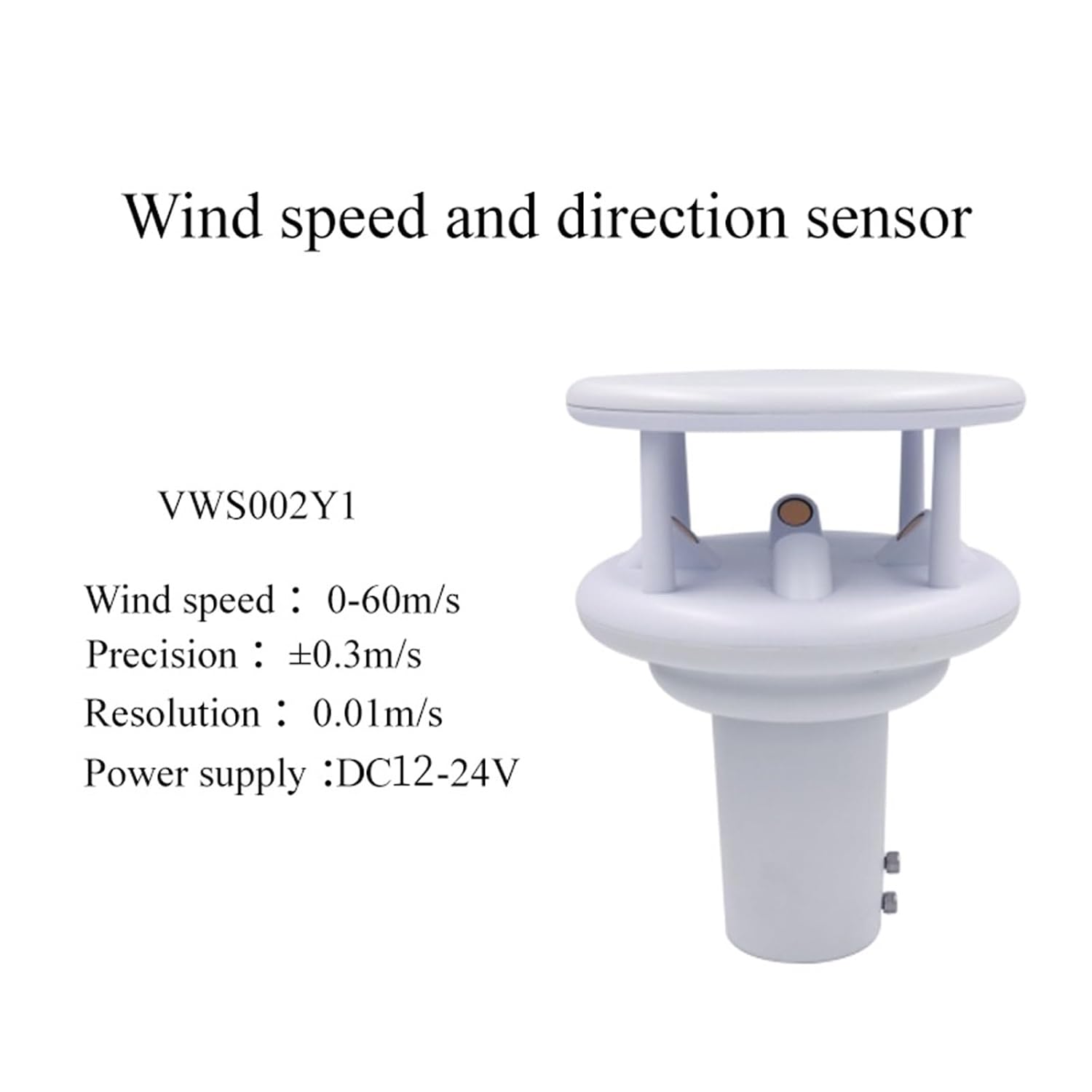

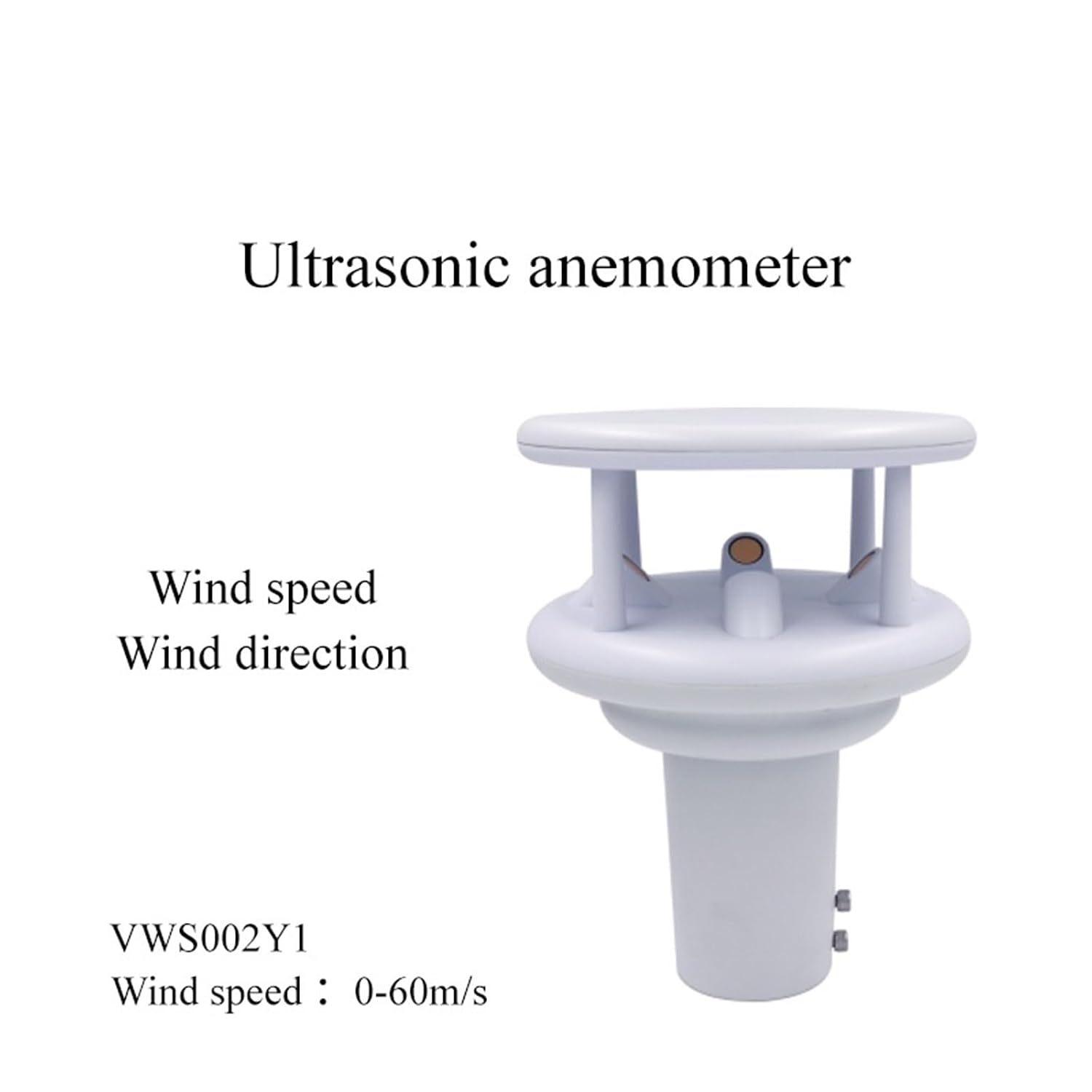

VWS002Y1 0-60m/s Mini Ultrasonic Wind Speed and Direction Sensor Sonic Anemometer Unit Wind Speed Sensor Module Wind Direction(VWS002Y1)

Wind Speed GaugesVWS002Y1 0-60m/s Mini Ultrasonic Wind Speed And Direction Sensor Sonic Anemometer Unit Wind Speed Sensor Module Wind Direction Sensor ModbusVWS002Y2 12-24V Ultrasonic Wind Speed And Direction Sensor Anemometer Wind Speed Meter Sensor Wifi IP65VWS002Y3 Anemometer For Cranes Wind Speed Meter 2 Axis Ultrasonic Wind Sensor Ultrasonic AnemometerProduct IntroductionVWS002Y1 ultrasonic wind speed and wind direction is a measuring instrument that uses the propagation time difference of ultrasonic waves in the air to measure wind speed and direction.Fields of applicationIt can be widely used in urban environmental monitoring, wind power generation, meteorological monitoring, bridges and tunnels, navigation ships, airports and other fields. No maintenance and on-site calibration required.VWS002Y1 Ultrasonic Wind Speed and Direction MeterParametersMeasuring rangeResolutionAccuracyWind speed0-60m/s0.01m/s± (0.3+0.03v) m/s (30M/S) ± (0.3+0.05v) m/s (30M/S)v is the standard wind speed Winddirection0-360°0.1°<;10m/s)Monitoring PrincipleWind speed and direction (ultrasonic)Output Signal4-20mARS485 Modbus RTU communication protocolPower supplyDC12-24V, SolarFixedSleeve fixing; Flange adapter plate fixingPower consumption<;30mAAverage heating current<;3A(optional heating)Casing materialASA engineering plasticProtection classIP65Overall Dimension251×182×182 (mm)Installation Dimension50 (inner diameter) × 70 (outer diameter) (mm)GPSEquipment tracking and positioning (optional)Data ReleaseOptional PC, cell phone APP, LED display, TV display, etc.VWS002Y2 Ultrasonic Wind Speed and DirectionParametersMeasuring rangeAccuracyResolutionSampling frequencyWind speed0-60m/s± (0.3+0.03V) m/s; V30m/s± (0.3+0.05V) m/s; V30m/sV is the standard wind speed value in the wind tunnel0.01m/s4HZWind direction0-359.9°<; 10m/s)0.1°4HZOperating temperature- 40 to 80 Output signalStandard products for RS485 interface, ModbusRTU;Customizable SDI-12 (optional)Maximum output frequencyPassive mode: 1/S Active mode: 1/minPower supplyDC9-24VClass of protectionIP65Fixed modeStandard product is sleeve type fixed, see product size drawing. (Optional flange fixing or bending plate fixing)Cable3m cable (optional 10 m communication cable)Customizable features (available separately)NMEA protocol, ASCII (ASCII compatible Vaisala), CAN interface (ASCII), tilt Angle/electronic compass, heating functionRemarks:Additional description of wind speed and wind direction parameters: Through the ultrasonic principle to measure wind speed and wind direction, you can also output instantaneous wind speed, instantaneous wind direction, average wind speed, average wind direction and other data.Optional electronic compass to measure the apparent wind speed and direction data, optional GPS to calculate the true wind speed and direction.VWS002Y3 Ultrasonic Wind Speed and Direction MeterParametersMeasuring rangeResolutionAccuracySampling frequencyWind speed0-40m/s0.01m/s±(0.5+0.05V)M/S10HZWind direction0-359.9°0.1°<;10M/S)10HZOperating temperature-30~70Output signalStandard products for RS485 interface, ModbusRTU;Customizable SDI-12 (optional)Maximum output frequencyPassive mode: 1/S Active mode: 1/minPower supplyDC9-24VClass of protectionIP65Fixed modeStandard product sleeve type (optional adapters available; see matching adapters for details)Cable3m cable (optional 10 m communication cable)Remarks:Wind Speed and Direction: Measure wind speed and direction through the ultrasonic principle, and also output instantaneous wind speed, instantaneous wind direction, average wind speed, average wind direction and other data.==========Battery Included : NoHigh-concerned chemical : NoneModel Number : VWS002Y1
